Hydraulic Hand-Held Pump - Parts List

Sealant Barrel Cap Sealant Barrel Cap Piston Assembly Cap Screw Copper Washer Washer Nut Washer Nut Nylon Piston Cup Piston Body Piston Body Piston O-Ring Inner Leather Cup Sealant Barrel Sealant Barrel Barrel Gasket Barrel O-Ring Barrel O-Ring Pump Body Assembly Pump Body Assembly Pump Body Assembly Pump Body - Bare Pump Body - Bare Hydraulic Pump Cylinder Hydraulic Pump Cylinder Cylinder Neck O-Ring Cylinder Neck O-Ring Bottom Cylinder O-Ring Pump Piston Pump Piston O-Ring Pump Piston O-Ring Check Valve Assembly Copper Washer Ball - 1/4 in Check Valve Spring Check Valve Screw Check Valve Screen By-Pass Valve By-Pass Valve By-Pass Valve By-Pass Valve Stop Cap Screw By-Pass Valve O-Ring Hydraulic Relief Valve Hydraulic Relief O-Ring Fulcrum Assembly Fulcrum Assembly Fulcrum Assembly Fulcrum Assembly Handle Handle Handle Latch Assembly Linkage Assembly Linkage Assembly Linkage Assembly Link Link Bolts Bolts Bolts Bolts Bolts Lock Nuts Lock Nuts Fulcrum Link Fluid Bag Fluid Bag Seal Ring Fluid Bag Seal Ring Fluid Bag Barrel Fluid Barrel Cap Handle Latch Assembly Stem and Knob Latch Screw Stem Spring Retainer Latch Arm Latch Spring Latch Sleeve Cap Screw Adapter 15,000 PSI Gauge with Guard High-Pressure Tee Extra High-Pressure Hose - 18 in Straight Swivel Giant Buttonhead Coupler Sealant Barrel Cap Piston Assembly Cap Screw Copper Washer Washer Nut Washer Nut Nylon Piston Cup Piston Body Piston O-Ring Inner Leather Cup Sealant Barrel Barrel Gasket Barrel O-Ring Pump Body Assembly Hydraulic Pump Cylinder Cylinder Neck O-Ring Pump Piston Pump Piston O-Ring Pump Body - Bare Barrel O-Ring Ball - 1/4 in Check Valve Spring Check Valve Screen Copper Washer Check Valve Screw By-Pass Valve Stop Cap Screw By-Pass Valve By-Pass Valve O-Ring Bottom Cylinder O-Ring Hydraulic Pump Hose Assembly Adapter 15,000 PSI Gauge with Guard High-Pressure Tee Adapter Adapter Extra High-Pressure Hose - 18 in Straight Swivel Buttonhead Coupler Retainer Latch Arm Cap Screw Latch Spring Latch Sleeve Bolts Fulcrum Link Stem and Knob Latch Screw Stem Spring Link Lock NutsFluid Barrel Cap Hydraulic Relief O-Ring Hydraulic Relief Valve Check Valve Assembly By-Pass Valve Fluid Bag Barrel Fluid Bag Fluid Bag Seal Ring Handle Latch Assembly Linkage Assembly Fulcrum Assembly Handle

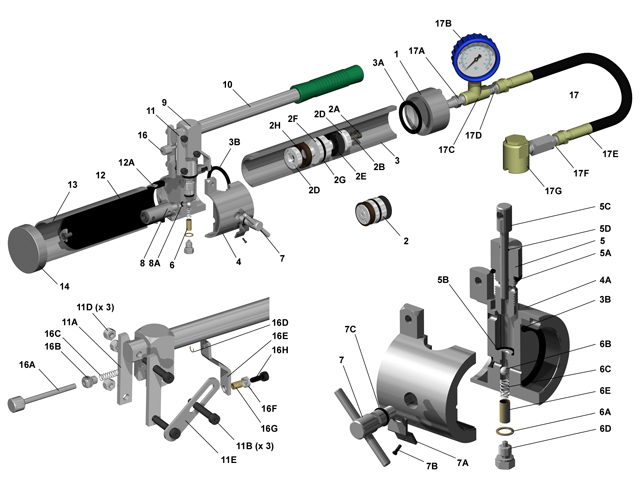

Illustration # Description Order Part # Qty. Req'd
1 Sealant Barrel Cap R-HG-07 1
2 Piston Assembly R-HG-08 1
2A Cap Screw R-HG-08A 1
2B Copper Washer R-HG-08BA 1
2D Washer Nut R-HG-08C 2
2E XX Nylon Piston Cup R-A8-20C 1
2F Piston Body R-HG-08E 1
2G X Piston O-Ring R-A8-20E 1
2H XX Inner Leather Cup R-HG-08H 1
3 Sealant Barrel R-HG-09 1
3A XX Barrel Gasket R-HG-10A 1
3B X Barrel O-Ring - Nitrile R-A8-19C 1
4 Pump Body Assembly R-HG-11 1
4A Pump Body - Bare R-HG-11A 1
5 XXX Hydraulic Pump Cylinder R-HG-11B 1
5A X Cylinder Neck O-Ring - Nitrile R-HG-11C 1
5B X Bottom Cylinder O-Ring - Nitrile R-HG-11D 1
5C XXX Pump Piston R-HG-11E 1
5D X Pump Piston O-Ring R-HG-08B 1
6 XX Check Valve Assembly R-HG-11F 1
6A Copper Washer R-HG-11FA 1
6B Ball - 1/4" R-HG-11FB 1
6C Check Valve Spring R-HG-11FC 1
6D Check Valve Screw R-HG-11FD 1
6E Check Valve Screen R-HG-11FE 1
7 XX By-Pass Valve R-HG-11G 1
7A By-Pass Valve Stop R-HG-11H 1
7B Cap Screw R-HG-11I 1
7C X By-Pass Valve O-Ring - Nitrile R-HG-31 1
8 Hydraulic Relief Valve R-HG-11J 1
8A X Hydraulic Relief O-Ring - Nitrile R-HG-11K 1
9 Fulcrum Assembly R-HG-12 1
10 Handle R-HG-13 1
11 Linkage Assembly R-HG-14 1
11A Link R-HG-14A 2
11B Bolts R-HG-14B 3
11D Lock Nuts R-HG-14C 3
11E Fulcrum Link R-HG-14E 1
XX Hydraulic Fluid R-HOPINT 1
12 XX Fluid Bag R-HG-15 1
12A Fluid Bag Seal Ring R-HG-15A 1
13 Fluid Bag Barrel R-HG-16 1
14 Fluid Bag Barrel Cap R-HG-17 1
16 Handle Latch Assembly R-HG-30 1
16A Stem & Knob R-HG-30A 1
16B Latch Screw R-HG-30B 1
16C Stem Spring R-HG-30C 1
16D Retainer R-HG-30D 1
16E Latch Arm R-HG-30E 1
16F Latch Spring R-HG-30F 1
16G Latch Sleeve R-HG-30G 1
16H Cap Screw R-HG-30H 1
17 Hydraulic Pump Hose Assembly H-H-HOSE 1
17A Adapter - 1/4" M X 1/4" M H-AD-4M4M 1
17B 15,000 PSI Gauge with Guard H-GD-01C 1
17C High-Pressure TEE - 1/4" H-T-444 1
17D Adapter - 1/4" M x 1/2" - 27 M H-AD-4M7M 1
17E Extra High-Pressure Hose - 18" H-HS-18XHP 1
17F Straight Swivel 1/4" M X 1/2"-27M H-SV-ST1 1
17G Giant Buttonhead Coupler H-CPSG-2 1
X O-Ring Repair Kit R-HG-OREP 1
XX Minor Repair Kit R-HG-MIN 1
XXX Major Repair Kit R-HG-MAJ 1

Please note:
X includes all parts with a single X illustration number.
XX includes all parts with a single X AND all parts with a double XX illustration number.
XXX includes all parts with a single X, double X and triple X illustration number.
